Details

Reference

Remove temp table contents after library export completes

Requirement:

During Library Export, the temporary database table IMEX_TAG_TEMP was not being cleared after export completion. As a result, the table continued to grow with each export, unnecessarily increasing database size and negatively impacting export performance over time.

Implementation:

The Library Export process has been enhanced to automatically truncate the temporary table IMEX_TAG_TEMP once the export completes successfully.
This ensures temporary data is removed immediately after use, preventing cumulative data buildup and maintaining optimal database size and export performance.

228363
Help Desk Ticket 1828984

Include Quote Classification in Quote family filters

Requirement:

As a V6 user, I want to filter Quote Families using Quote Classification so that I can organise my quotes into meaningful categories such as Builders, Urgent, or Test, and quickly locate the quotes I am currently working on.

Implementation:

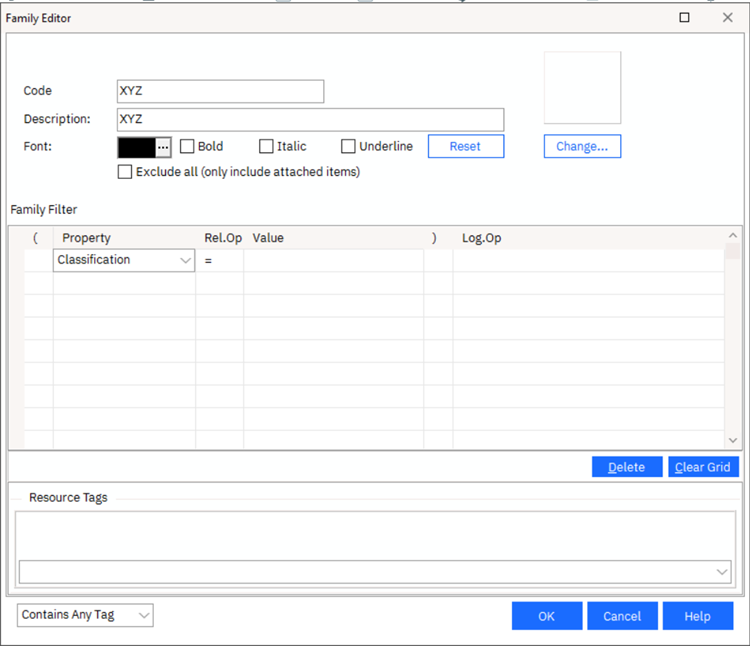

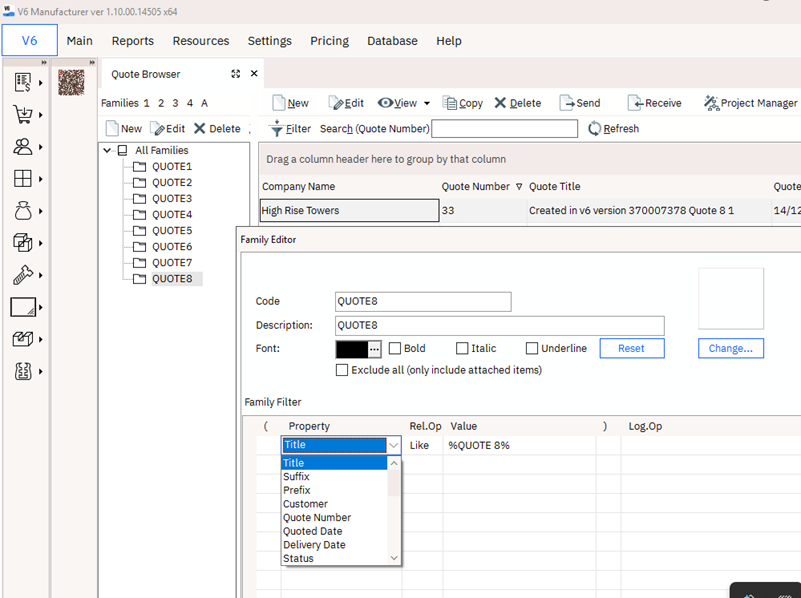

• A new “Classification” property has been added to the Quote Family Filter editor.
• Users can now create quote families that filter quotes based on their assigned Quote Classification.
• The filter uses the same Quote Classification defined on the Quote > Job Details > Details page.

228554
Help Desk Ticket 1826537

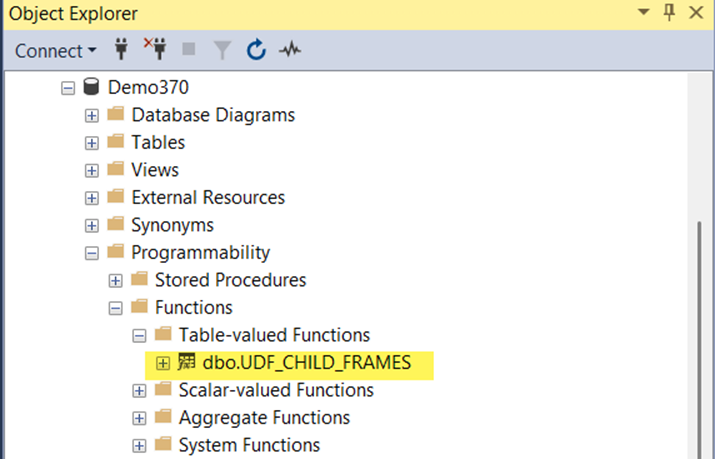

The database has been updated to 21586.

A new database table‑valued Function

UDF_CHILD_FRAMES has been added to support

cERPIntegration processing.

227534

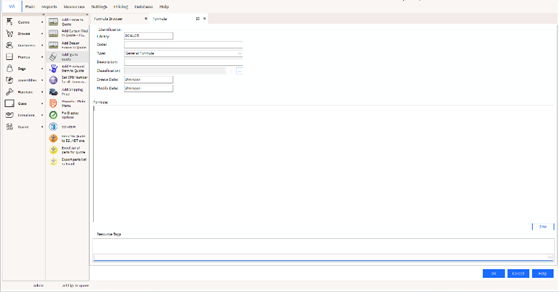

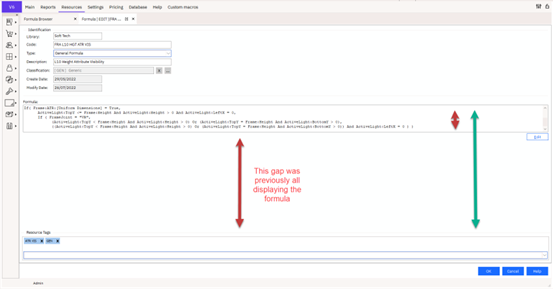

Size of Formula field in Formula editor has reduced

Symptom:

The Formula Editor displayed a reduced formula field with an empty gap, limiting visibility of longer formulas.

Resolution:

The formula field size has been restored to its original layout, removing the gap and improving formula visibility and editing.

3.80.80.1004

228353
Help Desk Ticket 1828898

Autosave quote losing quote items

Symptom:

A custom macro triggered by the OnAfterQuoteSave event did not execute correctly when an Auto Save was initiated.

Resolution:

Additional macro properties were exposed to identify the save context. The macro will be updated to detect Auto Save execution and exit early, preventing incompatible save operations during the Auto Save lifecycle.

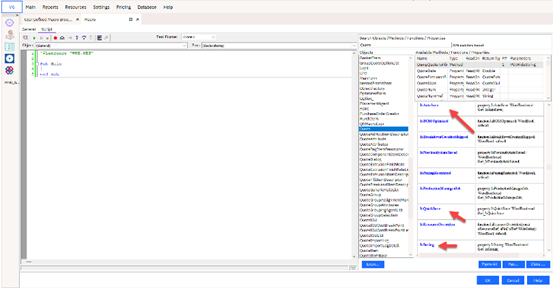

Properties:

IsSaving:Boolean;
IsAutoSave:Boolean;
IsQuickSave: Boolean;

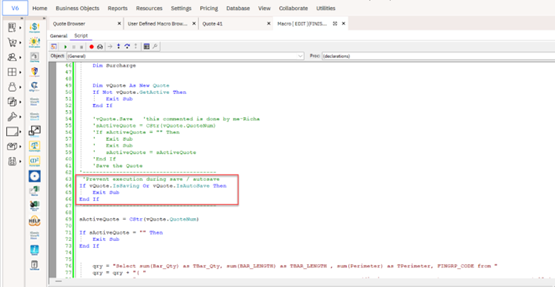

Macro Sample:

 ' Prevent execution during save/autosave
If vQuote.IsAutoSave Then
Exit Sub
End If

3.70.147.1001

228531
Help Desk Ticket 1826582

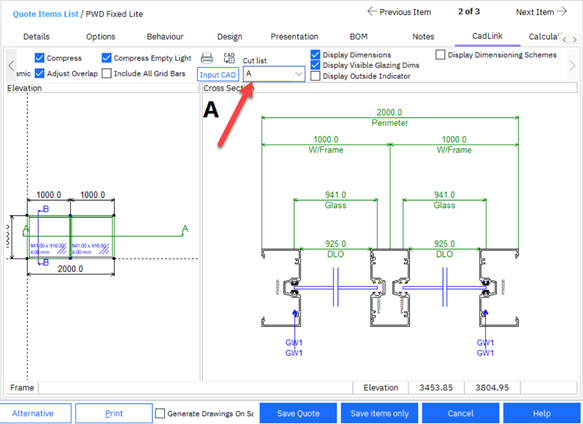

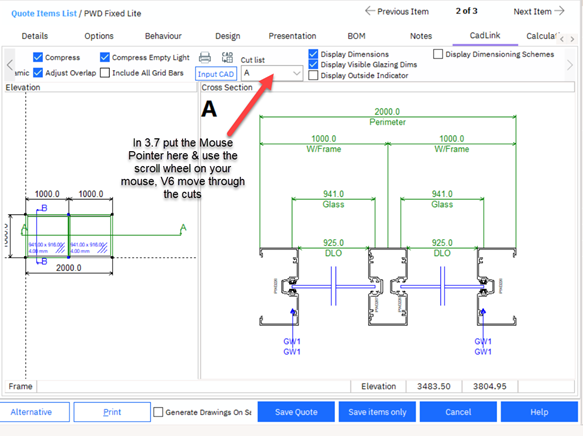

Mouse wheel no longer stepping through cuts

Symptom:

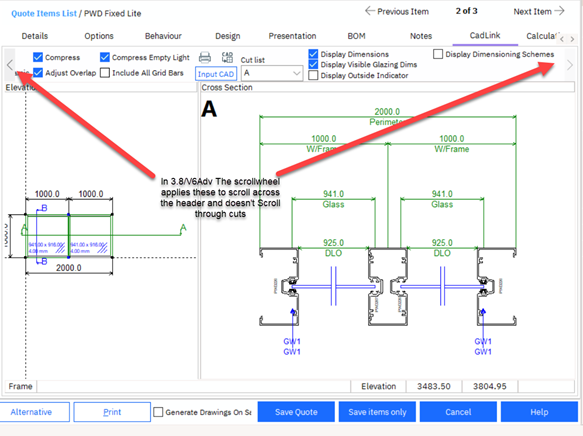

Mouse wheel scrolling no longer worked to step through cut values in the Cadlink cuts field.

Resolution:

Mouse wheel behaviour has been corrected so that it scrolls the header by default and automatically switches to stepping through cut values when the cuts field is hovered, restoring expected functionality.

3.80.74.1002

228546
Help Desk Ticket 1864207

Macro opening bag resource not loading correctly

Symptom:

Macros fail to load Bag resources, resulting in empty or missing Bag details (e.g., description not displayed).

Macro: -
Case 1:
'#Language "WWB-COM"
Sub Main
Dim oExtn As Object
Set oExtn = CreateObject("V6.Extrusion")
With oExtn
.Load("[EXT:SOFTTECH:401]")
MsgBox .Descr
End With
End Sub

Case 2:

'#Language "WWB-COM"
Sub Main
Dim oBag As Object
Set oBag = CreateObject("V6.Bag")
With oBag
.Load("[BAG:SOFTTECH:CSW HANDLE]")
MsgBox .Descr
End With
End Sub

Resolution:

 Fixed an issue where Bag resources were not being loaded correctly in macros.

 Bag resource loading now behaves consistently with other resource types (e.g., Extrusions), allowing macros to correctly access Bag properties such as description.

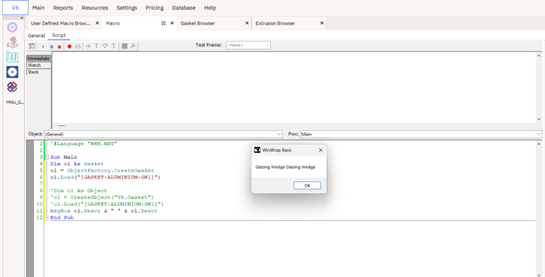

Macro: -

Case 1:

'#Language "WWB.NET"
Sub Main
Dim o1 As Gasket
o1 = ObjectFactory.CreateGasket
o1.Load("[GASKET:ALUMINIUM:GW1]")
'Dim o1 As Object
'o1 = CreateObject("V6.Gasket")
'o1.Load("[GASKET:ALUMINIUM:GW1]")
MsgBox o1.Descr & " " & o1.Descr
End Sub

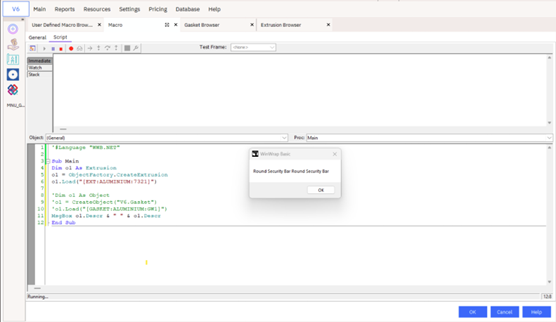

Case 2:

'#Language "WWB.NET"
Sub Main
Dim o1 As Extrusion
o1 = ObjectFactory.CreateExtrusion
o1.Load("[EXT:ALUMINIUM:7321]")

 'Dim o1 As Object
'o1 = CreateObject("V6.Gasket")
'o1.Load("[GASKET:ALUMINIUM:GW1]")
MsgBox o1.Descr & " " & o1.Descr
End Sub

Case 3:

'#Language "WWB.NET"
Sub Main
Dim o1 As Bag
o1 = ObjectFactory.CreateBag
o1.Load("[BAG:ALUMINIUM:7321]")

 'Dim o1 As Object
'o1 = CreateObject("V6.Gasket")
'o1.Load("[GASKET:ALUMINIUM:GW1]")
MsgBox o1.Descr & " " & o1.Descr
End Sub

1.10.80

228368

Library Export/Import process not deleting unused resource tags from resources in the target database

Symptom:

•  During Library Export/Import, unused or previously removed resource tags are not deleted in the target database.
•  After import, both old and new tags remain on the resource instead of being synchronised with the source library.

Resolution:

• Updated the Library Import process to correctly remove unused resource tags from resources in the target database.

• Resource tags are now fully synchronised, ensuring only tags present in the source library remain after import.

3.80

226787
Help Desk Ticket 1139884

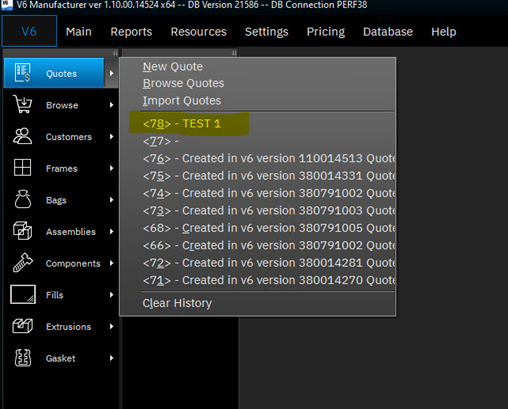

Changes to quote title not shown in action bar history for quotes

Symptom:

• As a V6 user, when I update a quote title and reopen the quote from the Action Bar history, the old title is still displayed instead of the updated one.
• This incorrect title remains visible even after saving the quote and restarting V6, causing confusion when identifying quotes in the Action Bar.

Resolution:

• Fixed an issue where quote title updates were not refreshing in the Action Bar history.
• The Action Bar now consistently displays the latest quote title after edits and across application restarts

1.10.00.14524

228532

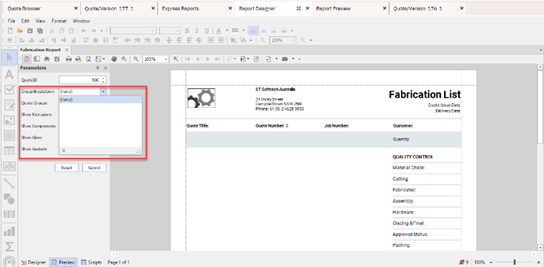

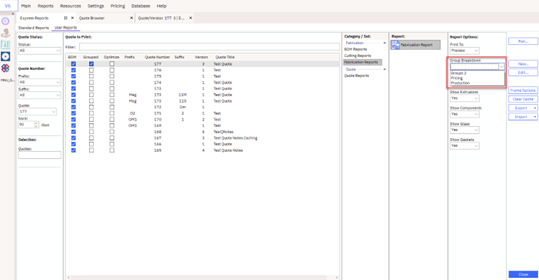

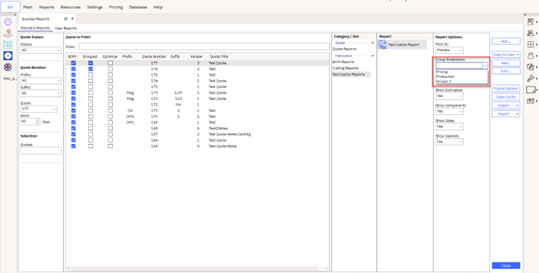

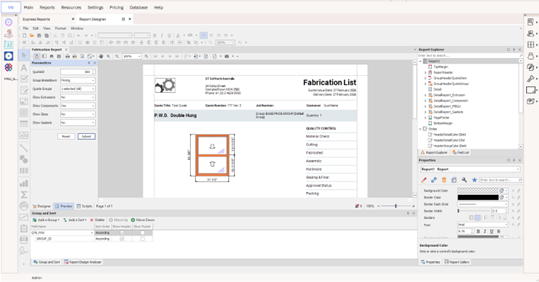

[DxReports] Mismatch Between V6 Report Dialog and DevExpress Native Preview for Cascading Parameters

Symptom:

Cascading parameters in Express Reports did not display or sort correctly, causing mismatched behaviour between the V6 Report Dialog and the DevExpress preview.

Resolution:

• Updated the cascading parameter handling to ensure consistent data loading and sorting between the V6 Report Dialog and the DevExpress Native Preview.

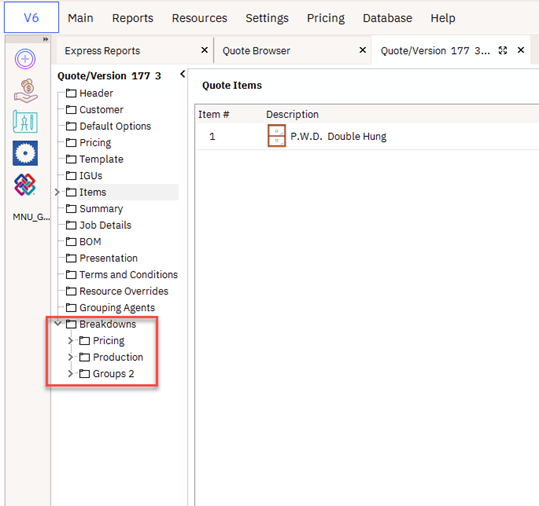

• Quote Group/Batch parameters now populate correctly, respect the defined sort order, and behave consistently in both the V6 dialog and DevExpress preview

1.10

228605

Quote Attributes don't trigger

Symptom:

Changes to Quote Attributes did not trigger the OnAfterQuoteOptionChange event when using the COM interface.

Macro: -

'#Language "WWB.NET"
Sub Main
Dim varQuote As V6.Quote = ObjectFactory.CreateQuote
varQuote.GetActive
Dim varFrameItem As V6.FrameItem = varQuote.ItemList.SelectedItem
Dim varOptions As V6.QuoteAttributes = varFrameItem.Attributes
Dim varOption As V6.QuoteAttribute = varOptions.ItemByName("Supplier Cost")
varOption.Value = 300
varFrameItem.ApplyQuoteOptions
End Sub

Resolution:

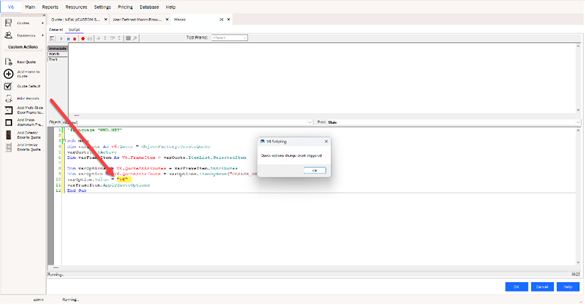

Updated COM event handling so OnAfterQuoteOptionChange now triggers correctly when Quote Attributes are modified.

Macro: -

'#Language "WWB.NET"
Sub Main
Dim varQuote As V6.Quote = ObjectFactory.CreateQuote
varQuote.GetActive
Dim varFrameItem As V6.FrameItem = varQuote.ItemList.SelectedItem
Dim varOptions As V6.QuoteAttributes = varFrameItem.Attributes
Dim varOption As V6.QuoteAttribute = varOptions.ItemByName("DEALER_USER_MODE")
varOption.Value = "V6"
varFrameItem.ApplyQuoteOptions
End Sub

1.10.80

228090
Help Desk Ticket 1222651

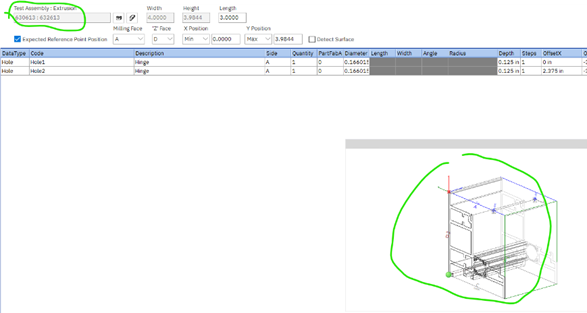

Several issues when copying milling resources / milling sets

Symptom:

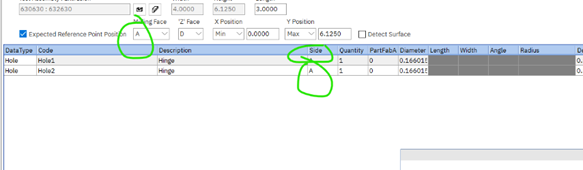

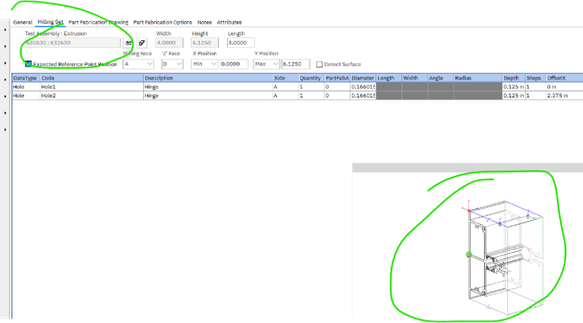

When copying a milling resource or milling set, changes made to the copied set also incorrectly updated the original milling set’s test Assembly/Extrusion data.

Resolution:

Fixed the copy process so copied milling sets are fully independent and no longer overwrite test data from the original.

3.80

228527
Help Desk Ticket 1864072
